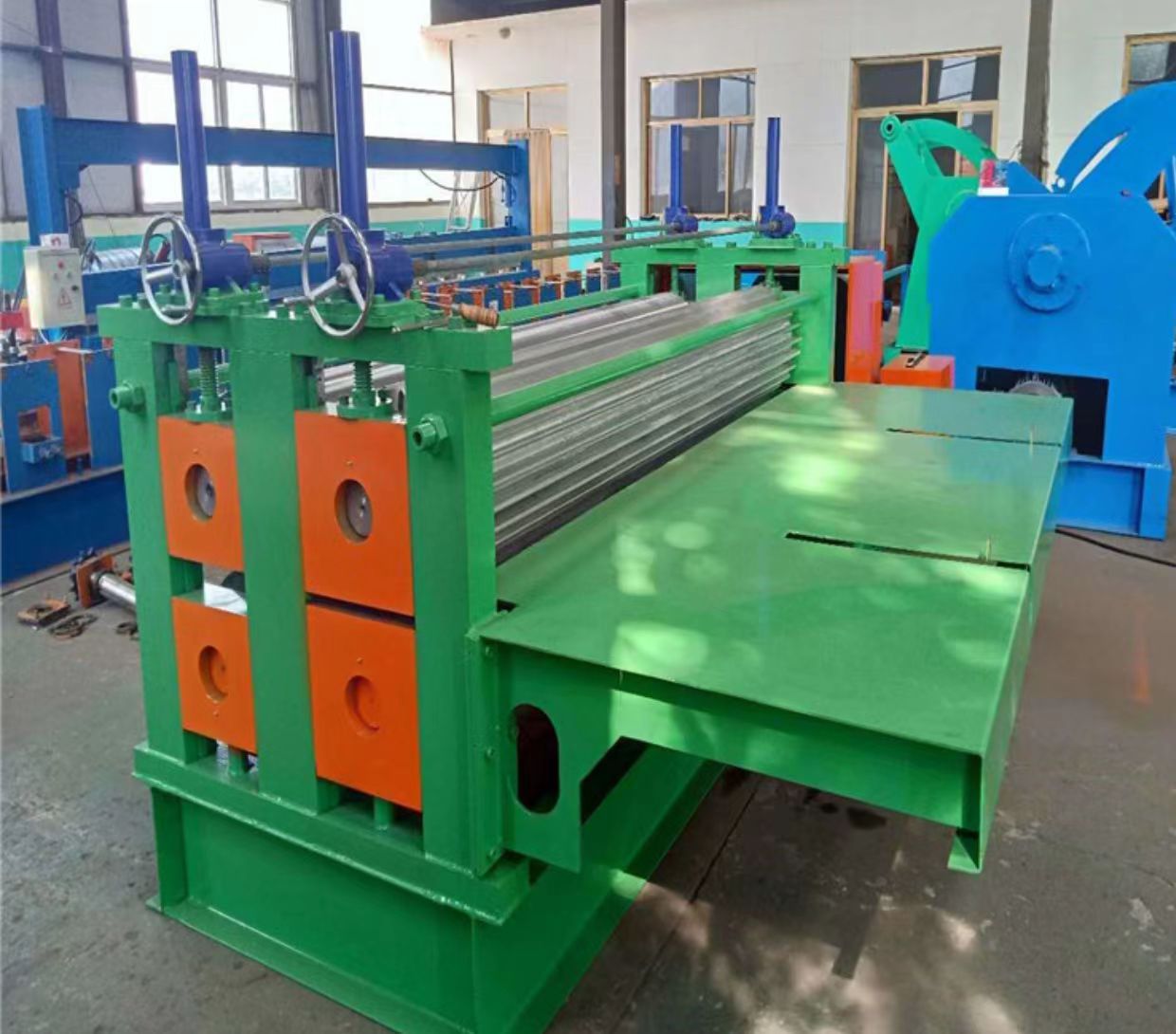

Corrugated steel profile rolling forming machine

Horizontal Ripple Horizontal Compression Forming Machine: A Powerful Assistant for Efficient Ripple Manufacturing

As a key equipment for manufacturing corrugated products in industrial production, the horizontal corrugated cross forming machine plays an important role in many fields. Its unique design and advanced technology ensure efficient and precise production processes.

Working principle

The horizontal corrugated cross forming machine achieves corrugated forming through a series of precision components working together. Raw materials (such as metal sheets, plastic sheets, etc.) are first fed into the equipment and, under the precise control of the feeding system, move towards the forming area at a stable speed. In the forming area, a set of specially designed rollers or molds apply lateral pressure to the raw materials under power drive. The shape and arrangement of the rollers are determined by the specific specifications of the target ripples, and through the coordinated rotation and extrusion actions, the raw material gradually forms the desired ripple shape. During the entire forming process, the control system will monitor and adjust various parameters in real time, such as pressure, feeding speed, roll speed, etc., to ensure the dimensional accuracy and quality stability of the ripples.

Structural characteristics

Horizontal layout: The horizontal structural design makes the equipment more stable during operation and able to withstand larger workloads. This layout facilitates the horizontal transportation of raw materials, reduces material displacement or deformation that may be caused by gravity factors, and is beneficial for improving production accuracy. At the same time, the horizontal design also facilitates the installation, maintenance, and overhaul of equipment, reducing the difficulty and labor intensity of operators.

High precision rolling rolls and molds: Rolling rolls and molds are the core components of forming machines, and their manufacturing accuracy directly affects the quality of corrugated products. High quality steel is usually used and subjected to special heat treatment processes to improve its hardness, wear resistance, and fatigue resistance. The high-precision processing technology ensures the smoothness of the rolling mill and mold surfaces, as well as the accuracy of the ripple profile, enabling the production of corrugated products with regular shapes and precise dimensions. In addition, some equipment is equipped with quickly replaceable rolling mill and mold systems, which facilitate adjustments according to different production needs and greatly improve production efficiency.

Automated Control System: Equipped with advanced automation control systems, it can achieve comprehensive monitoring and precise control of equipment operation. The operator only needs to input the required production parameters such as ripple shape, size, production speed, etc. on the operation interface, and the control system can automatically adjust the working status of the feeding system, power system, and forming system to ensure the automation of the entire production process. At the same time, the control system also has fault diagnosis and alarm functions, which can timely detect and solve problems that occur during equipment operation, ensuring the continuity and stability of production.

Application Fields

Construction industry: In the field of construction, horizontal corrugated cross forming machines are mainly used to produce various corrugated sheets for construction, such as roof tiles, wall decorative panels, etc. These corrugated boards have good strength and waterproof performance, which can effectively resist the erosion of the natural environment. At the same time, their beautiful corrugated shape also adds a unique visual effect to the building.

Packaging industry: cardboard commonly used for manufacturing corrugated cardboard boxes. By forming multiple layers of paper through transverse compression, a corrugated structure with buffering effect is formed. This corrugated cardboard not only improves the compressive strength of the cardboard box and protects the internal items from damage during transportation and storage, but also has the advantages of light weight and low cost, and is widely used in the packaging of various products.

Automotive and Machinery Manufacturing: In the automotive and machinery manufacturing industry, corrugated metal or plastic parts for automotive components, mechanical protective covers, etc. can be produced. These components can reduce overall weight, improve product performance and energy efficiency while ensuring structural strength.

Performance advantages

Efficient production: Advanced design and automation control system enable the horizontal corrugated cross press forming machine to have high production speed and complete the manufacture of a large number of corrugated products in a short period of time. At the same time, the equipment has strong continuous operation capability, reducing pauses and adjustment time in the production process, further improving production efficiency.

High precision products: With high-precision rollers, molds, and precise control systems, it is possible to produce corrugated products with extremely high dimensional accuracy. The height, spacing, angle, and other parameters of the ripples can be strictly controlled within a very small error range, meeting the stringent requirements for product quality in application scenarios.

Wide material adaptability: It can process various types of raw materials, including metal sheets (such as galvanized sheets, aluminum sheets, stainless steel sheets, etc.) and plastic sheets (such as PVC, PE, PP, etc.). By adjusting equipment parameters and replacing corresponding rollers and molds, it is possible to adapt to the physical properties of different materials and achieve diversified product production.

Low maintenance cost: The equipment structure design is reasonable, and key components are made of high-quality materials, with high reliability and stability. The daily maintenance work is relatively simple, only requiring regular cleaning, lubrication, and inspection to ensure the long-term stable operation of the equipment and reduce the equipment maintenance cost of the enterprise.
