Automatic K-type metal rainwater trough roll forming machine

The gutter water tank machine is mainly composed of an active feeding shaft, a leveling device, a side wheel for extruding thick edges, a forming host, a forming cutting device, a hydraulic station, a computer control cabinet, and other parts. Its working principle is that the motor pulls and drives the driven feeding, and the raw materials (such as galvanized steel plates, color steel plates, or aluminum plates) enter the leveling machine for leveling. After leveling, the material is passed through an encoder shaft, fixed in length by the encoder, and then enters the forming host. In the forming host, it is gradually cold-formed through the use of multiple component shafts and forming wheel materials, making it into the shape of a gutter and water trough. When the set length is reached, the forming cutting device performs fixed length cutting under the drive of the hydraulic system, cutting off the formed gutter drainage channel. The entire process is controlled by the automatic control software in the computer control cabinet, achieving information management and automated operation of production.

Performance characteristics

-High degree of automation: PLC control is adopted, and the human-machine interface realizes the interaction between humans and PLCs. Operators can set programs to automatically run, control the production line, modify control parameters, view operating parameters and fault indications, etc.

-High production efficiency: The production speed can usually reach several meters to tens of meters per minute, and some equipment such as those equipped with servo motors can reach around 20 meters per minute, and can produce continuously, greatly improving production efficiency.

-High product accuracy: Through leveling devices, coding axis length determination, and precise molding molds, the dimensional and shape accuracy of the gutter gutter can be ensured, and the product consistency is good.

-Easy to operate and maintain: The equipment is easy to operate, and personnel who have undergone simple training can operate it on duty. At the same time, it has the characteristics of easy maintenance and upkeep, and mechanical debugging and mold replacement are relatively easy.

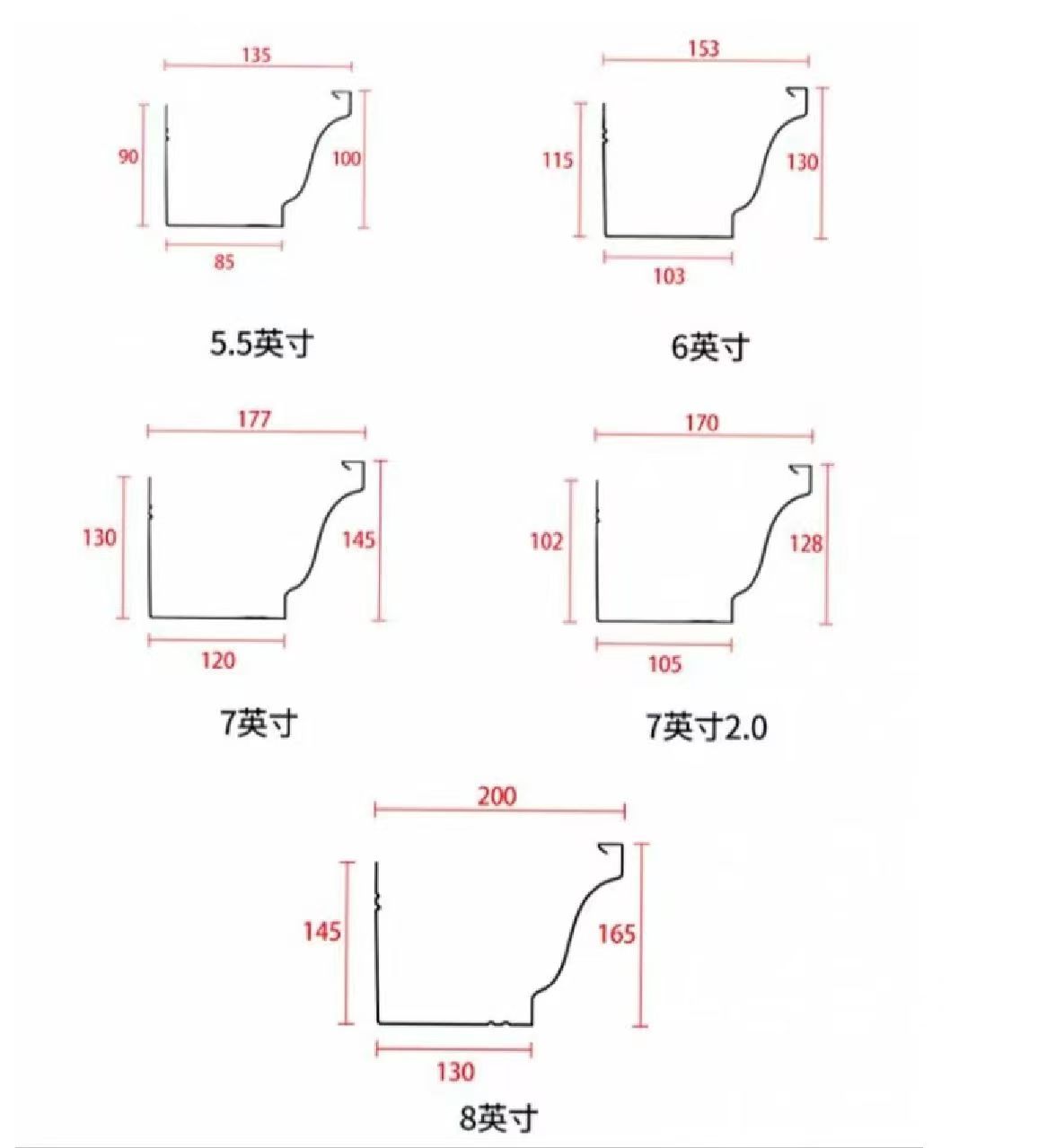

-Strong adaptability: Different specifications and shapes of gutter sinks can be customized according to customer needs, capable of processing various raw materials such as color steel, aluminum plate, etc., and can be equipped with punching and other functions for easy installation and overlapping.

-Durable and sturdy structure: The bed is made of welded steel plates and undergoes tempering treatment. The forming frame is made of national standard H-beam welded, which has good aging resistance and acid alkali corrosion resistance, and can operate stably for a long time.
