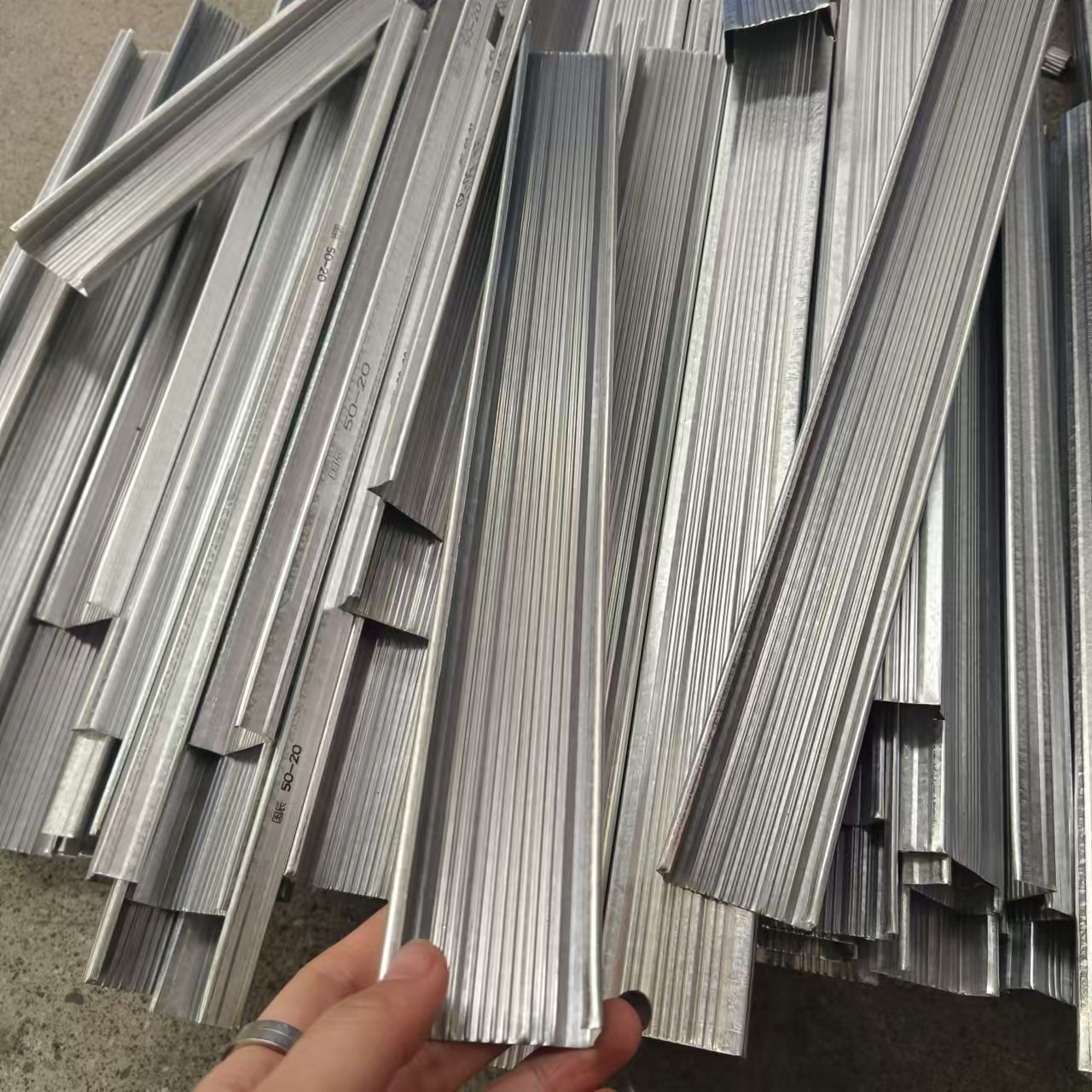

Gypsum board hat raw edge channel ceiling roll forming machine gypsum board cold rolling bending machine

1. Equipment production process:

Simple unloading - enter the unloading guide - roll forming - after forming (automatic cutting to the required size)

——Finished product support materials

2. Host:

1. Raw material width is approximately: 90mm

2. Rolled product specifications: 50mm

3. Rolling speed: 20-25m/min

4. Number of roller passes: 14

5.Roller material: bearing steel, electroplating

6.Shaft diameter: Ø50mm

7. Spindle material: 45# tempered

8. Bearing model: 6210

9. Side panel thickness: S25mm

10. Host chassis: iron plate spliced box frame

11. Host overall dimensions: about 6m×1m×1.1m

12. Host weight: about 3 tons

13.Host motor: 7.5KW

14. Plate thickness: 0.5-1.0mm (Q235 material)

15. Length error: ±2mm

16.Transmission mode: gear transmission

3. Cut the electronic control part

1. Using hydraulic cutting

2. The scissor blade material is Crmo15

3. Hydraulic station power: 5.5KW

4. Hydraulic pressure: 16Mpa

5. One computer case 700mm×1000mm×300mm

6. Touch screen, PLC, frequency converter, encoder from Japan Omron,

4. Unit composition

1. Simple feeding rack 8T

2. Molding unit

3. Computer control cabinet

4. Shearing device

5.Hydraulic pump station
